FEA Engineering Services Capabilities using Altair OptiStruct
ProSIM is a FEA consultancy service company offering CAE services and OptiStruct FEA service.
ProSIM offers linear and nonlinear FEA simulation under static and dynamic loadings. Altair OptiStruct FEA service used for analysis and optimization of structures subjected to strength, durability & NVH problems. ProSIM has offered CAE services, offering across many industries for structural design and optimization application using Altair’s OptiStruct FEA software tool.
ProSIM capabilities to provide engineering service using OptiStruct FEA service are:
- Eigenvalue analysis of large & Integrated structure
- Noise and Vibrations – NVH Analysis
- Linear and nonlinear static and dynamic analysis with contact and plasticity
- Large displacement analysis with continuous sliding and hyper elastic materials
- Buckling analysis
- Structural Optimization
- Topology & topography
- Size, shape, and free shape
- Preloading using nonlinear results for buckling, frequency response, and transient analysis
- Rotor dynamics
Figure below shows a case study. Linear & Non-linear (material) static analysis of Base Frame structure is carried out using OptiStruct. FE Modelling & application of loading & boundary condition is done under HYPEMESH CAE service.

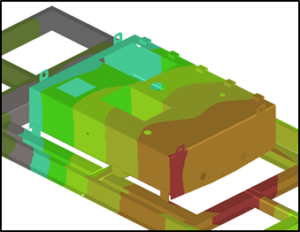

Figure-1: Structural Strength Analysis of Base Frame
Full-vehicle noise and vibration analysis under can be done using OptiStruct. FE Modelling & application of loading & boundary condition is done using HYPEMESH. Normal modes, eigenvalue & Coupled fluid-structure (NVH) analysis is done using FEA service competency.

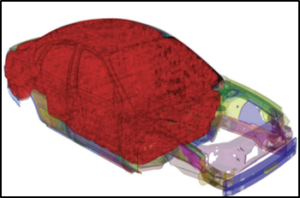

Figure-2: Full-vehicle noise and vibration analysis (Courtesy: Altair)
Topology optimization of lattice structure is also carried out as part of OptiStruct FEA service. Generated conceptual design proposals based on a user-defined design space, performance targets & manufacturing constraints. Based on strain paths under loading conditions, topology optimization is achieved in a quick and efficient manner using OptiStruct. ProSIM has delivered several projects of topology optimization for various industry segments.
